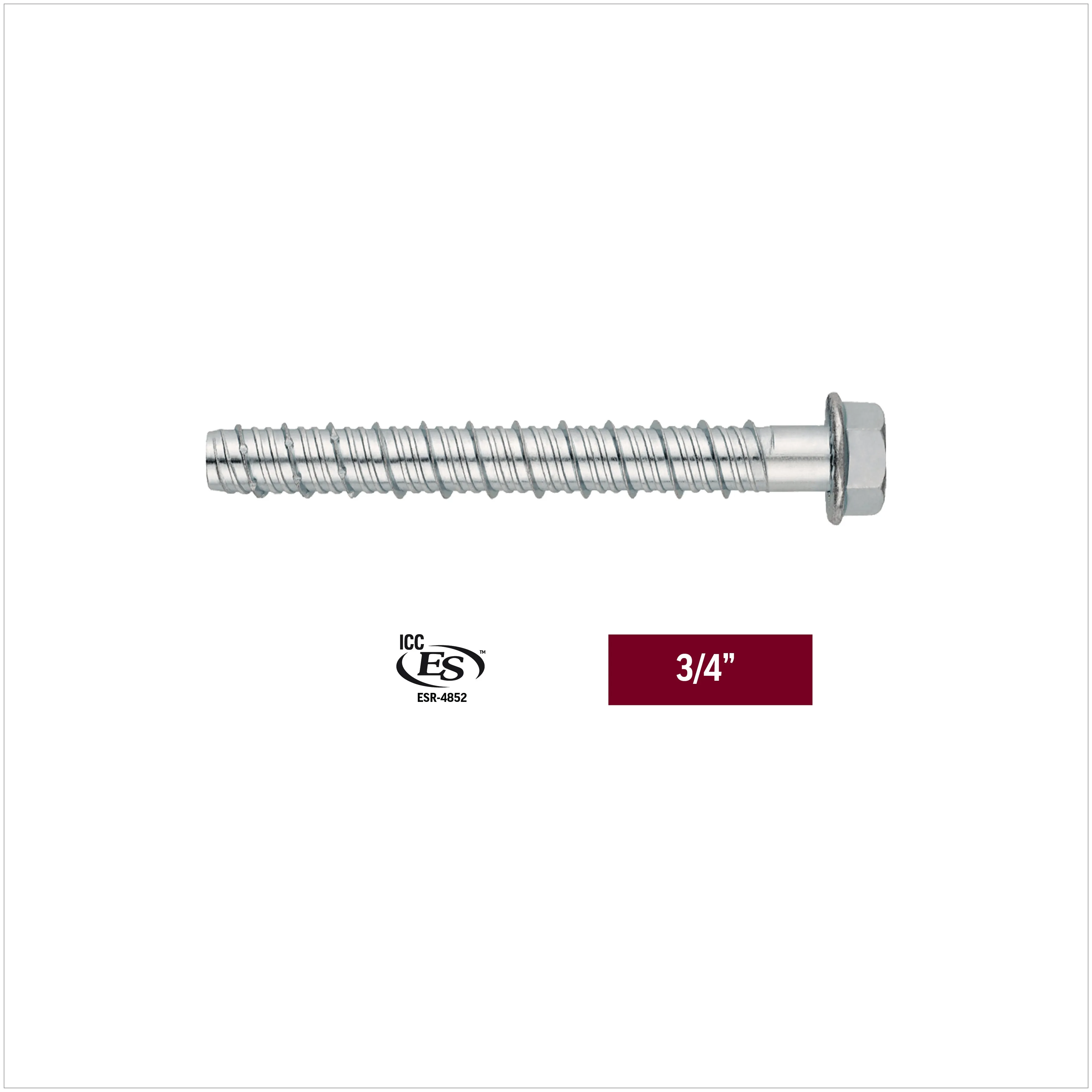

DuraDrive 3/4in. x 5 in. Performance Threaded Anchor
DuraDrive 3/4 in. x 5 in. High Performance White Zinc Threaded Anchor is a one-piece, heavy-duty screw anchor with a finished hex head. It is simple to install, easy to identify and fully removable. The thread design designed for use with standard ANSI drill bits. The steel threads along the anchor body tap into the hole during installation to provide keyed engagement and allow for reduced edge and spacing distances. Compatible with normal weight concrete, sand-light-weight concrete, concrete over steel deck, concrete masonry and solid clay brick.
Features:
- Can be installed closer to the edge than traditional expansion anchors
- One-piece, finished bolt head design
- Fully removable and reinstall able in the same hole
- Designed for standard ANSI tolerance drill bits
- Diameter, length and identifying marking stamped on head of each anchor
- Indoor applications
Specifications:
| Application | Heavy Duty |
| Approvals | |
| Diameter (in.) | 3/4in. |
| Finish | White Zinc |
| Length (in.) | 5in. |
| Limitations | Not recommended for installation into uncured concrete (less than 7 days old) |
| Material | Steel |
| Maximum Weight Capacity | See Technical Data Sheet |
| Measure Type | Imperial |
| Technical Data Sheet | |
| Used For: | Concrete & Masonry |
