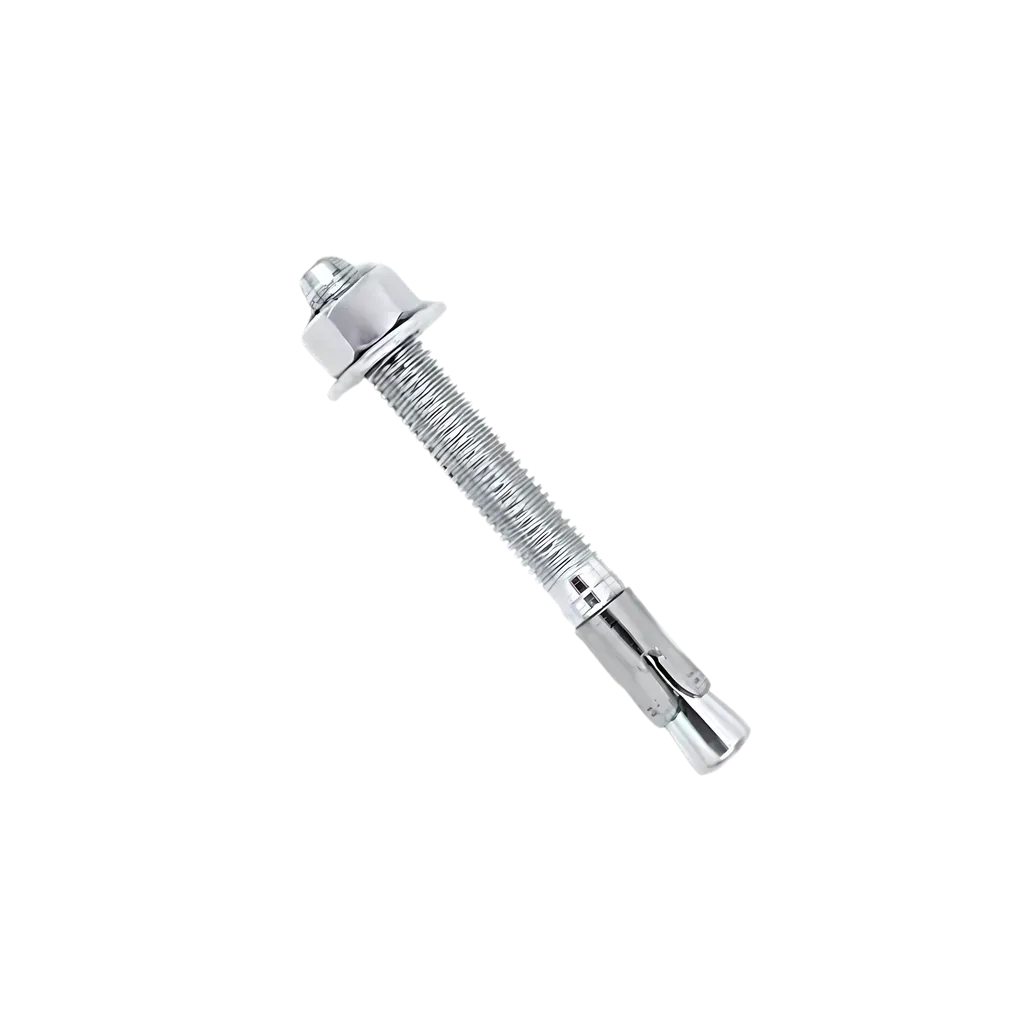

The Power-Stud SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, sand-lightweight concrete, concrete over steel deck, and grouted concrete masonry. The anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.

Features:

• Consistent performance in high and low strength concrete
• Nominal drill bit size is the same as the anchor diameter
• Anchor can be installed through standard fixture holes
• Length ID code and identifying marking stamped on head of each anchor
• Anchor design allows for follow-up expansion after setting under tensile loading

Approvals:

• Structural connections, i.e., beam and column anchorage
• Safety-related attachments
• Interior applications / low level corrosion environment
• Tension zone applications, i.e., cable trays and strut, pipe supports, fire sprinklers
• Seismic and wind loading
